Pallet Flow Rack

Status: Made to order
Price: According to the design

Product added to cart

Benefits at a glance:

  • Can be used in dry storage, freezers and coolers
  • Used to increase picking efficiency (case or pallet) on a FIFO basis
  • Offers medium to high density storage in flow lanes varying from two to more than 20 pallets deep
  • Applications usually involve high pallet counts representing low numbers of SKUs such as food processers

General Description

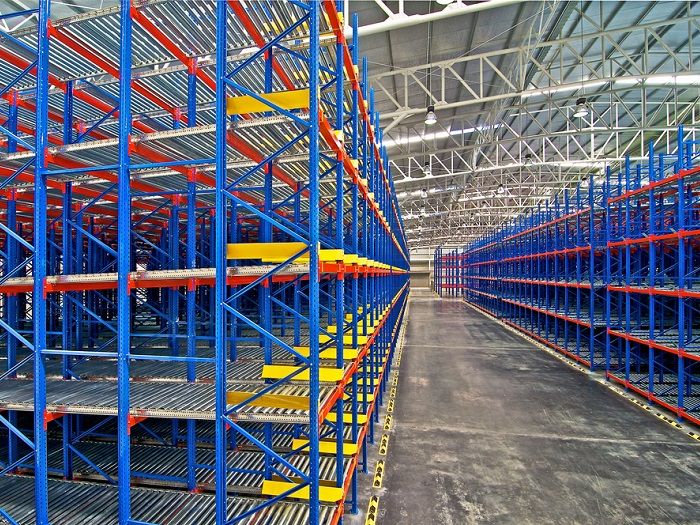

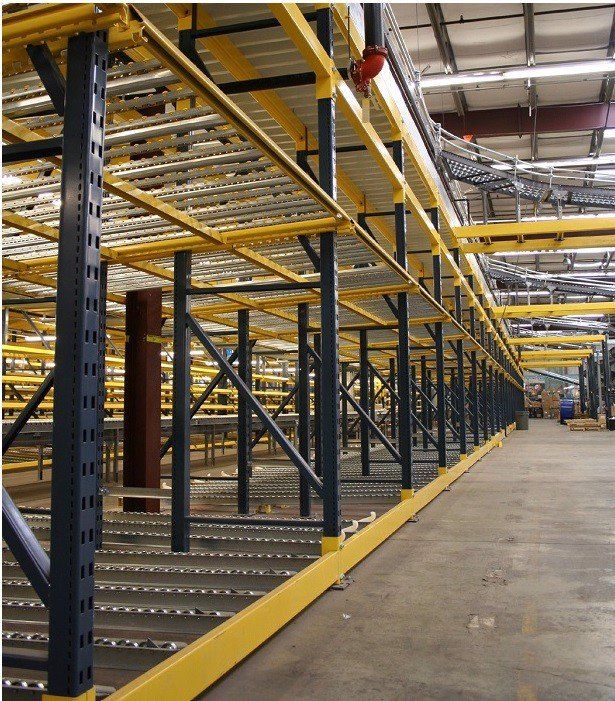

MYTEK Pallet Flow Rack system uses gravity-driven conveyers to move pallets. Each lane contains either roll tracks which require higher quality pallets, or full width rollers which work with a variety of pallet qualities.

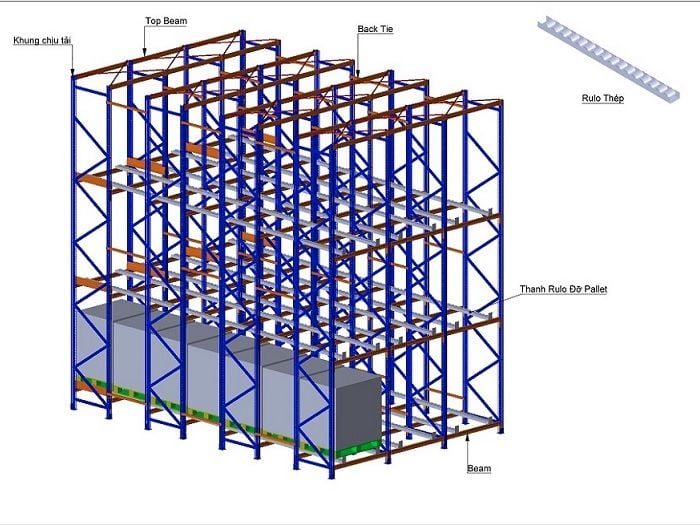

The main parts of this storage system are the static racks and dynamic roll tracks. The latter are placed on a decline along the rack and gravity is used to move pallets from one location to another. Each lane contains brakes that control the movement of the pallets. As a pallet is unloaded, the one behind it moves forward.
Pallet Flow Rack suits FIFO inventory systems well since, as loads are moved from the loading to the unloading ends, the first load in is removed first. It is also ideal when pallets must be moved from one area to another without fork lift trucks, such as a production line. Less dependency on fork lift trucks also means more flexibility, lower truck maintenance costs and less fork lift damage to racks.



Attributes

  • Does not require specialized forklift
  • Loads index automatically – forklift does not have to enter system
  • Higher capital cost than static high density alternatives
  • Not easily adjusted or reconfigured
  • FIFO system


The leading manufacturer of industrial racking in Vietnam

MYTEK industrial rackings are manufactured from JIS G3101 SS400 standard iron and steel with extremely high bearing capacity and durability. We invested in modern production lines with international standards, electrostatic spraying technology to help products have a long service life, explosion-proof, rust-proof.

MYTEK is willing to give customers free advice on setting up and choosing racking for their warehouse. MYTEK supports customers to install and delivery racking nationwide. With a 3-year warranty, customers can be assured about the process of using. MYTEK's technical team is always ready to support customers in case of need.
